Sega Chihiro AVIP cable

unknown, original

Video cable to direct the videosignals from the xboxboard to the communicationboard. is required, layout is known so a rebuild is posible.

Known Vendors🔗

Games Using This Part🔗

No known games use this part.

Hardware Using This Part🔗

Images and Diagrams🔗

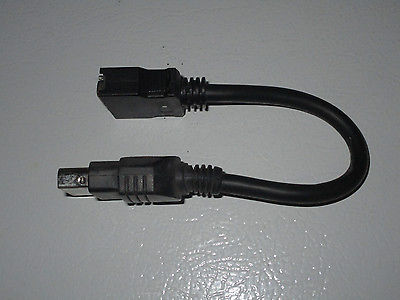

Retail official AVIP cable

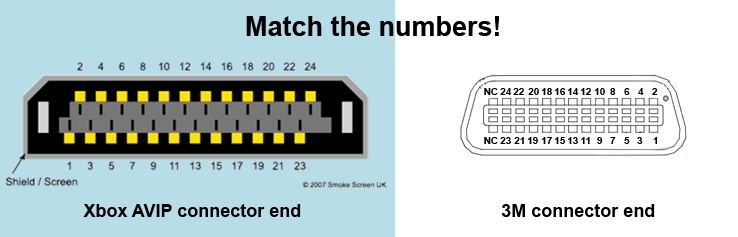

Wiring diagram to rebuild the rare expensive cable

Repair Manuals🔗

No manuals currently added.

Repair Tips🔗

Making the cable yourself 🔗

a special 3M connector is used on the Sega communicationboard side, take a normal xbox video cable plug and solder wires matching the numbers. Diagram is included above.
